AC Infinity CLOUDRAY S6 (Oscillating)

An oscillating 150 mm clip fan with a brushless EC motor, ten speeds, ten wind modes and ten oscillation levels. IP54 protected.

The CLOUDRAY S6 is the sweeping version of the A6. What is interesting is not that it oscillates but how far: you set the width of the sweep yourself, in ten steps.

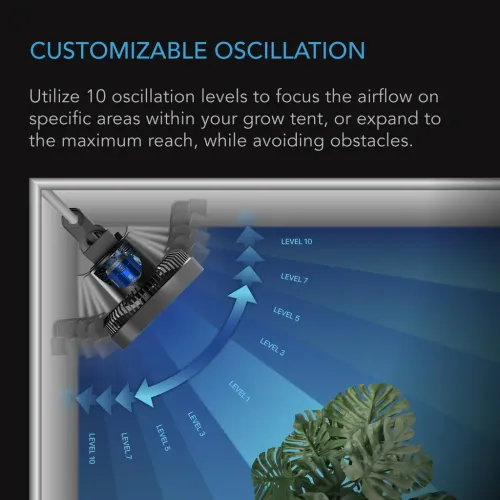

What ten oscillation levels are for

Most oscillating fans have one range and sweep it over and over. In a grow tent that is rarely what you want, because a tent is full of things you would rather not blow at: the tent wall, a dehumidifier, a bag of substrate, or your controller's sensor probe.

With ten levels you decide how wide the arc is. At the narrowest it blows almost on one point, say the corner where moisture always sits. At the widest it covers as much of the canopy as it can. In between, you can have the arc stop before it reaches an obstacle rather than moving the fan somewhere else.

That matters most in a small tent. A fan blowing into the tent wall does nothing for your plants and does make noise, because flapping fabric is louder than the fan itself. A narrower arc solves that without relocating anything.

The sweep is independent of speed, so you can sweep wide at a low setting, which in a full tent is often more pleasant than narrow and hard.

What it shares with the rest of the range

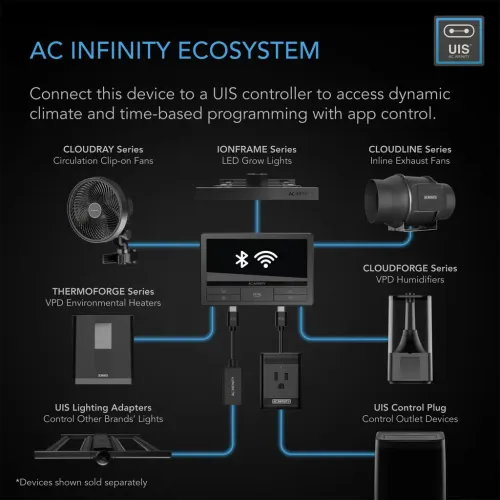

The same brushless EC motor with carbon steel gears and dual ball bearings, the same IP54 sealing against dust and moisture, and the same metal clamp gripping a tent pole like a vice. It can join a UIS controller so the fan follows your climate programme; that controller is sold separately.

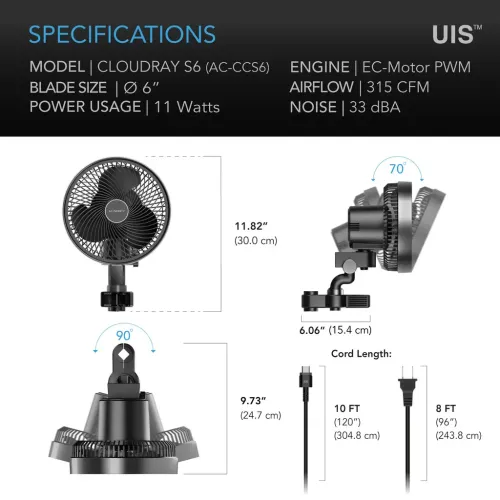

Technical Specifications:

• Model: AC-CCS6
• Blade diameter: 150 mm (6 inch)
• Oscillation: automatic, ten adjustable levels

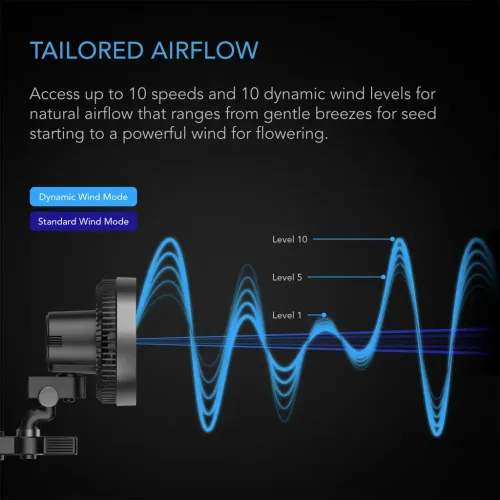

• Settings: ten speeds and ten wind modes
• Motor: brushless EC, carbon steel gears, dual ball bearings
• Mounting: metal clamp, any orientation
• Ingress protection: IP54
• Connects to: UIS controller, sold separately

Frequently asked questions

Can I set how far it sweeps?
Yes, in ten steps, from nearly fixed to as wide as it goes.

What is the difference from the A6?
The A6 has the same blade diameter but is aimed by hand. This one sweeps automatically.

Are the settings kept when it is switched off?
Settings are retained, so after an interruption it resumes as you left it.
