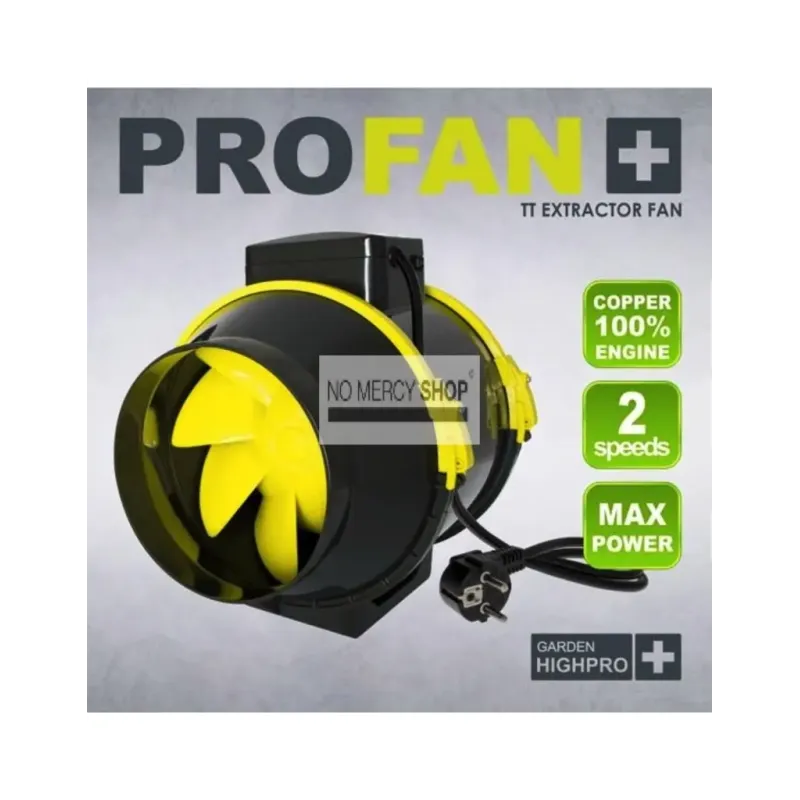

Garden Highpro Profan TT 150mm

The largest of the TT range: 150 mm, 405 m³/h at 30 watts and 520 at 60 watts. Mixed-flow fan with a copper winding and cable included.

Why this brand sells two kinds of inline fan

Garden Highpro has two ranges that look alike from outside: the Proline and this TT. They are not the cheap and expensive versions of each other, they are a different type of fan, and that decides what you can use them for.

The Proline is axial. An axial fan pushes air straight along its axis, like a propeller, and that works excellently as long as there is little opposing it. Put something in the way that offers resistance and its output falls away quickly.

The TT is mixed-flow. The impeller has a domed hub with profiled blades, so the air is driven not only backwards but slightly outwards as well. That is an intermediate form between axial and centrifugal, and it produces more pressure than an axial fan of the same size.

That difference is exactly what a carbon filter demands. A filter is a bed of carbon the air has to be forced through, and forcing costs pressure. So an axial fan rated 305 m³/h and a mixed-flow rated 405 are not two points on one scale: with a filter in front, the first keeps far less than the gap in the numbers suggests.

Rule of thumb: with a filter, or a long duct with bends, take the TT. If you are only moving air from A to B, a Proline is cheaper and sufficient.

Technical Specifications:

• Diameter: 150 mm
• Lowest speed: 405 m³/h
• Highest speed: 520 m³/h
• Power draw: 30 to 60 watts
• Fan type: mixed-flow
• Winding: copper
• Cable: included

Frequently asked questions

Can I fit a carbon filter to this?
Yes, a mixed-flow fan suits that better than an axial one.

Is 520 the same as 520 on another fan?
Only blowing free. Under resistance a mixed-flow keeps more than an axial.

What is the difference from the 150 mm Proline?
The Proline is axial and meant for free airflow; this is mixed-flow and works against resistance.
