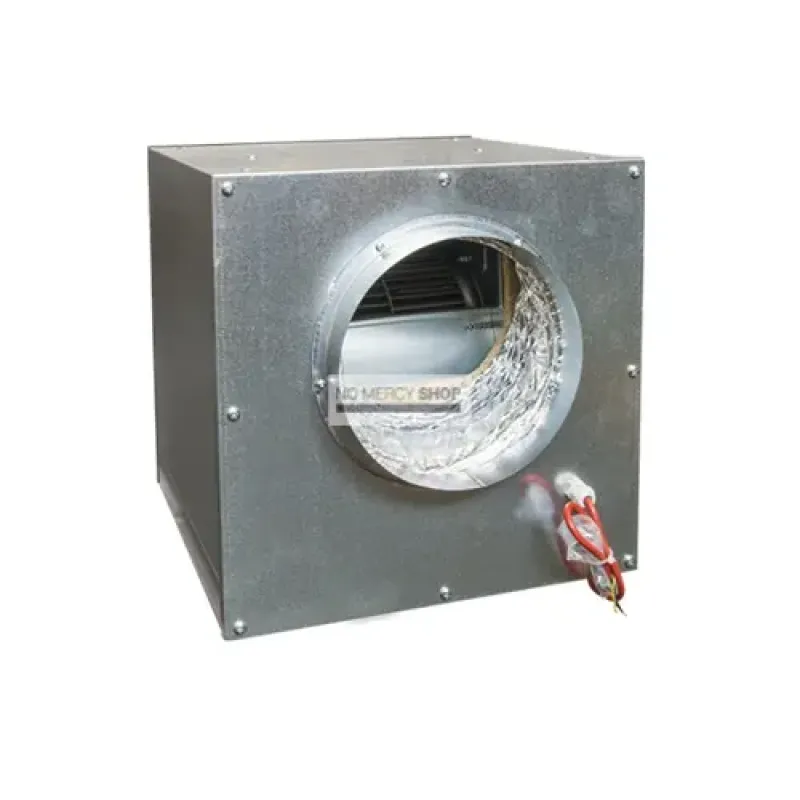

Metal Softbox 1500 M³

The largest softbox: 1500 m³/h, blower hung in rubber, steel case, 250 mm flanges and a current draw of 1.4 A.

When you are better off with the ordinary steel box

This box and the ordinary 1500 m³/h steel box do the same job at the same flow through the same connection. The softbox costs more, and it is fair to know when that difference repays itself and when it does not.

It repays when the noise has to travel through structure. If the box sits on an upper floor, against a shared wall, inside a home or above a room where someone sleeps, contact noise is the problem rather than the air. That is precisely what the rubber mounting stops.

It repays too when you intend to throttle, since a throttled motor vibrates more.

It repays less when the box stands free in a shed, a garage or a separate plant room with nobody below or beside it. There is barely any structure there to pass vibration into, and you are mostly paying for a problem you do not have. An ordinary insulated box does the job.

If in doubt the question is simple: can anyone hear this box through a floor or a wall? If yes, this is the version.

Technical Specifications:

• Construction: steel case with acoustic lining
• Motor suspended in: rubber
• Damping: lining plus vibration decoupling
• Capacity: 1500 m³/h
• Current: 1.4 A
• Inlet and outlet: 1 x 250 mm in, 1 x 250 mm out
• Supplied with: plug and flanges

Frequently asked questions

Is the difference from the ordinary box audible?
Mostly as low hum through floors and walls. In the room itself the gap is smaller.

Does it deliver as much air as the ordinary box?
Yes, both 1500 m³/h on 250 mm.

Does it still need anti-vibration mounts when hung?
The motor is already decoupled. Hang the case itself from solid structure rather than a thin wall.
