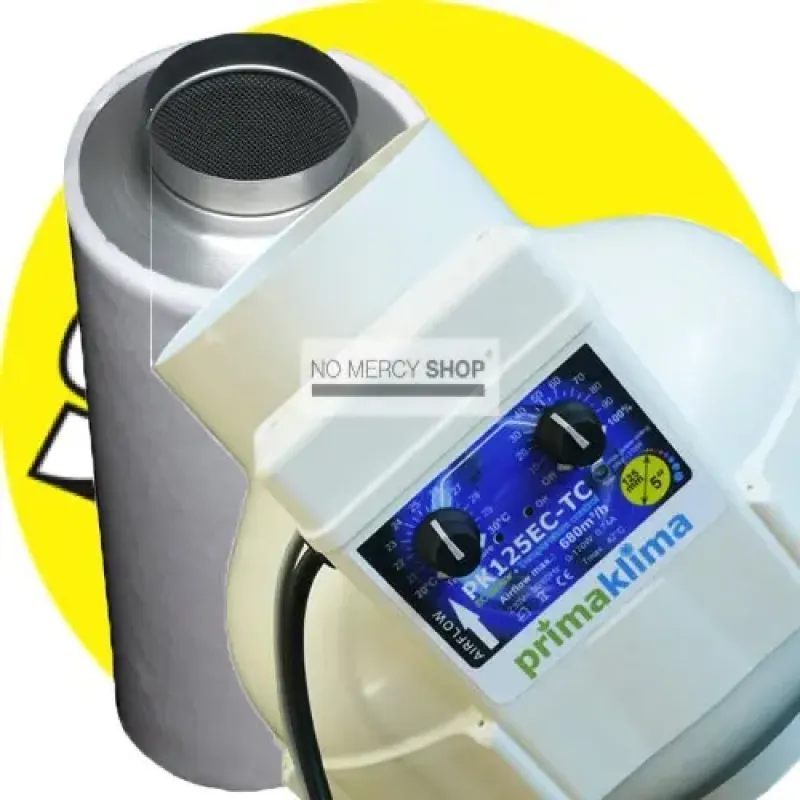

Prima Klima PK 125 EC-TC + PK K1604 filter

The PK 125 EC-TC fan rated 680 m³/h combined with the K1604 Industry filter at 460 m³/h optimal, mounting bracket included. Both on 125 mm.

The set, or the two parts separately

Fan and filter are sold separately here too, so the question is what the combination gives you.

What the set adds is that the connection sizes and the mounting already agree. Both parts are 125 mm and the bracket is included, so there is no working out which bracket suits which housing. It also saves a delivery and a decision.

What you give up is choice of filter. The K1604 supplied is an Industry filter with an optimum of 460 m³/h, deliberately below the 680 the fan can reach. That is not a mismatch but how such a set is meant to work: the fan is temperature controlled and runs far below its maximum most of the time. The filter is chosen for what you move on average, not for the peak.

If you do intend to run near that 680 as a rule, this filter is too small and you are better off with separate parts and a filter to match.

For the usual case, a tent with control that rarely lets the fan run flat out, the combination is balanced.

Technical Specifications:

• Set contains: fan, filter and mounting bracket
• Fan: PK 125 EC-TC, Ziehl-Abegg motor, quiet housing
• Fan capacity: 680 m³/h
• Filter: PK K1604 Industry
• Optimal filter flow: 460 m³/h
• Maximum filter flow: 700 m³/h
• Flange: 125 mm, both parts
• Included: mounting bracket

Frequently asked questions

Is the filter not too small for this fan?
Not if you run it under control. The filter is chosen for the average, not the peak.

Can I pick a different filter?
Not within this set. Buy the parts separately for that.

Is the bracket included?
Yes, the mounting bracket is supplied.
