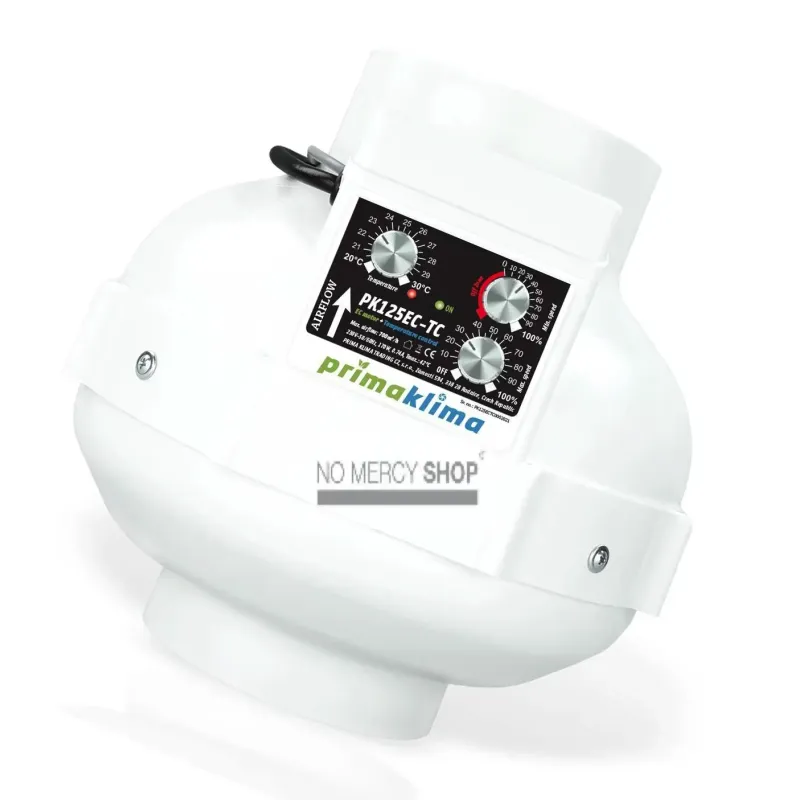

Prima Klima PK125EC-TC Temperature-Controlled Fan 125 mm
Prima Klima PK125EC-TC EC inline fan with integrated temperature control, adjustable airflow up to 680 m³/h and an efficient ebm-papst motor for quiet and automatic ventilation.
- Prima Klima
- Model: 1150.0207-1
QUALITY
PAYMENT
SHIPPING
PACKAGED
Carefully selected products.
Fast and secure checkout experience.
EU-wide delivery from trusted stock.
Carefully and discreetly packaged.
A 125 mm inline fan with an ebm-papst EC motor, built-in temperature control and a maximum airflow of 680 m³/h. Power draw runs from 0 to 170 watts.
A motor that draws what the job asks
The most striking figure here is not the 680 but the range of nought to a hundred and seventy watts, because that is exactly what separates an EC motor from the usual alternating current one.
A classic fan motor runs at mains frequency and draws much the same whatever you do. Turn it down with a dimmer and you cut pieces out of the mains voltage: speed falls, but consumption falls far less, and the motor gets hotter and rougher for it.
An EC motor works the other way. It first converts the mains to direct current and switches its own coils electronically, so speed is controlled directly. Ask for half the air and it draws roughly a quarter to a third of the power, since power required rises with the cube of speed.
Practically that means this. On its lowest setting this unit costs almost nothing to run, and since extraction rarely needs to run flat out for most of the year, that is the setting it sits at most. The speed also stays smooth, which saves vibration and therefore noise.
The backward-curved blades belong to the same picture: they move air with less resistance than a straight blade.
Technical Specifications:
- Motor: ebm-papst EC
- Maximum airflow: 680 m³/h
- Power: 0 to 170 watts
- Input: 230 V, 50/60 Hz
- Maximum current: 0.74 A
- Control: integrated temperature controller, adjustable min and max speed
- Rotor: backward-curved blades
- Housing: impact-resistant flame-retardant polyamide
- Dimensions: 244 x 244 mm
Frequently asked questions
Do I need a separate controller?
No, temperature control is built into the housing.
Why 680 m³/h on 125 mm?
That is exceptional for the size. Make sure your filter and ducting can take it.
Does it really use almost nothing at the lowest setting?
Power required rises with the cube of speed, so half the speed is roughly an eighth of the power.
