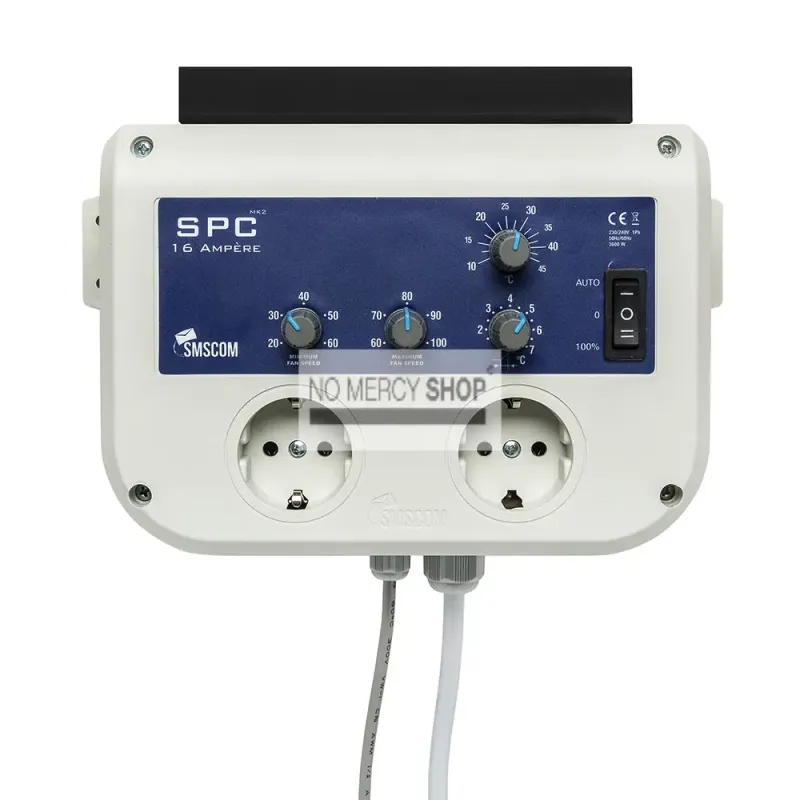

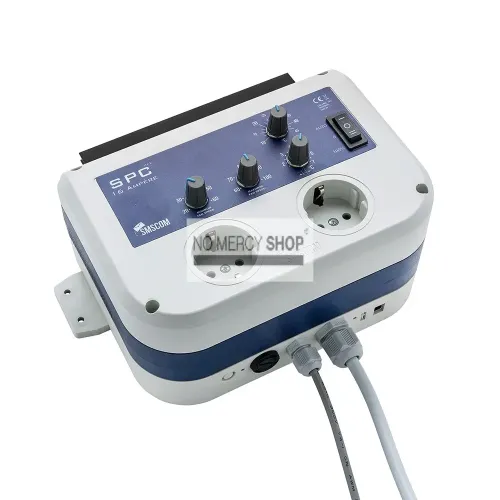

SMSCOM SPC 16A MK2

An automatic climate controller to 16 amps, successor to the SPC 14A. Expandable with up to five slave modules.

Slaves that add capacity

Here is the difference that makes this range unusual, and it is the exact opposite of how expansion works on many other controllers.

On most systems an expansion module shares the main controller's power. You gain outlets, but the total stays the same: the module divides your capacity, it does not increase it.

On the SPC range it works differently. Each SPC SLAVE 16A MK2 has its own mains connection and brings its own 16 amps. And you can connect up to five per controller.

What that means for how you build an installation:

• Your master sets the control, not your ceiling. Temperature control comes from the master; capacity grows with every slave you add.
• You can start small without boxing yourself in. A setup that grows substantially later does not have to be oversized up front.
• Everything still runs on one control. Slaves are driven automatically by the master, so they follow the same temperature and the same speed.

That last point remains the limit. To run two rooms at different temperatures you need a second full controller with its own sensor. Slaves solve capacity, not a second climate.

Technical Specifications:

• Rating: 16 A
• Modes: automatic or 100%
• Outlets: intake and extraction fans in any socket on the unit
• Expansion: up to 5 x SPC SLAVE 16A MK2, each with its own mains connection
• Control: electronic, temperature driven

Frequently asked questions

Does a slave count towards the master's 16 amps?
No. An SPC slave has its own mains connection and brings its own 16 amps. Note that on some other controllers it does work the other way.

How many slaves fit?
Up to five per controller.

Can I use slaves on the 8 amp version?
Yes, the slave works with both the SPC 8A MK2 and the 16A MK2.

Do I need a heavier electrical installation for all that capacity?
Probably. Every slave draws from the mains, so your total load rises. Have it assessed before expanding.
