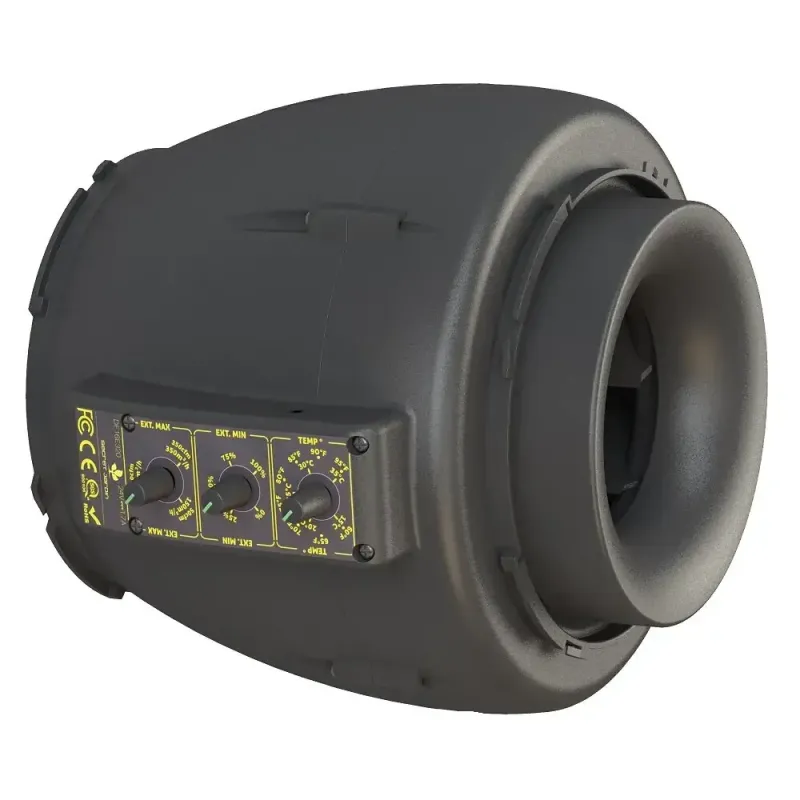

Secret Jardin DF16E350 T° EC Extractor 350 m³/h

The largest extractor in the DF16 system, with settings of 150, 250 and 350 m³/h, a 24 volt EC motor of at most 35 watts and a housing of 25 by 25 by 21 cm.

Setting a range rather than a speed

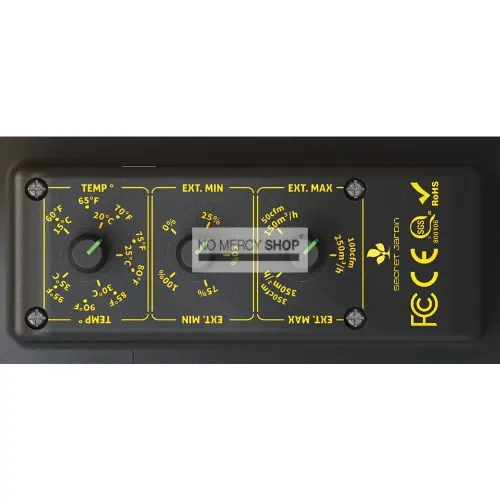

On this model you set three things: the target temperature, a minimum extraction speed and a maximum. Those last two are what separates this from an ordinary controller, and they deserve explaining because they are rarely used well.

The minimum is a floor that keeps running. Even when it is cool enough you want baseline extraction: moisture has to leave, fresh air has to enter, and your carbon filter only works while air passes through it. Set the minimum to zero and on a cold night the tent can stop entirely while humidity climbs.

The maximum is a ceiling. With it you limit how hard it may work in heat, because your filter or ducting only handles so much, or because you want to cap noise at night.

Between those two limits the extractor regulates itself on the measured temperature. So you are not setting a speed but a behaviour: never less than this, never more than that, and as much as needed in between.

A sensible starting point is the minimum at the lowest setting your humidity control can live with, and the maximum at your filter's capacity.

Technical Specifications:

• Drive: 24 volt EC motor
• Settings: 150, 250 or 350 m³/h
• Power: at most 35 watts
• Current: 1.5 A
• Control: integrated temperature regulation
• Adjustable: target temperature, minimum and maximum speed
• Sensors: built in and external, 240 cm lead
• Dimensions: 25 x 25 x 21 cm
• Protection: IP54
• Cables: 60 cm power lead, 240 cm sensor lead

Frequently asked questions

Why set a minimum?
To stop extraction halting altogether when it is cool. Moisture still has to leave.

Why a maximum?
To stay within the capacity of your filter and ducting, and to cap noise.

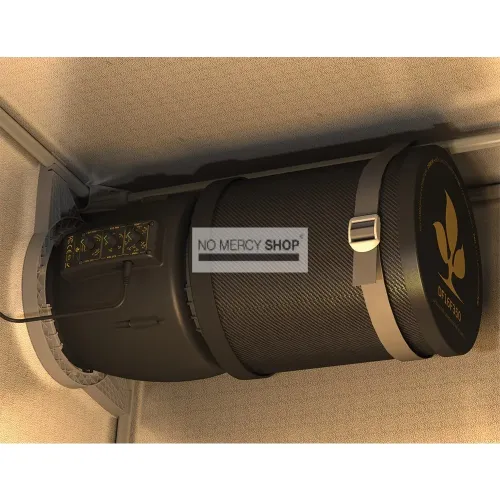

Which filter suits this extractor?
On its highest setting the 350 m³/h DF16 filter matches it.
