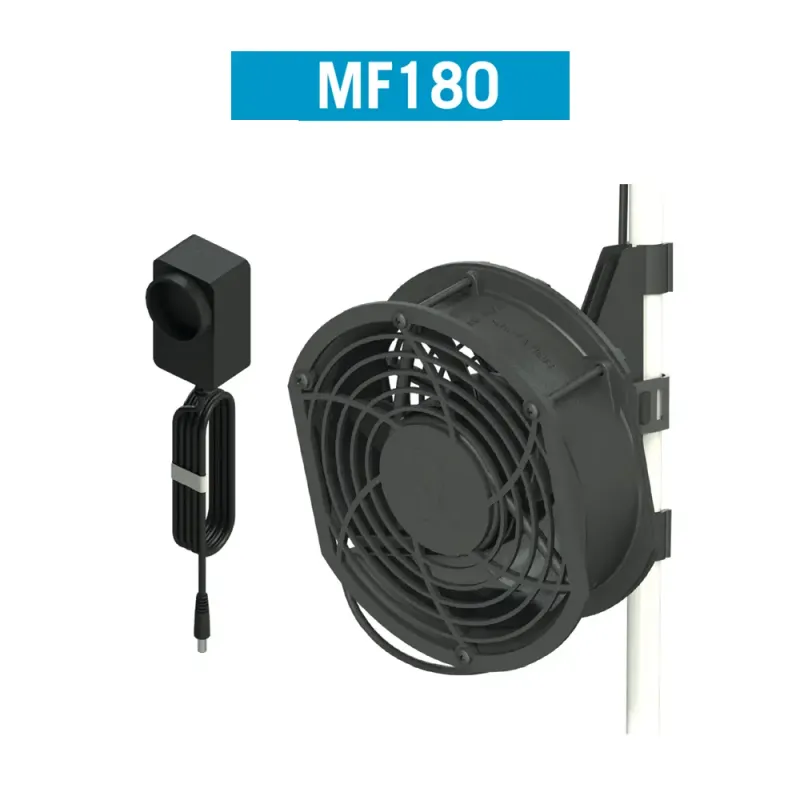

Secret Jardin - Monkey Fan 180mm

The largest Monkey Fan, with a 180 mm blade and a brushless 24 volt motor. Two different clips are supplied, which let it fit almost any tent frame.

Your pole size decides which fan fits

On a clip fan the mount is the part that makes the decision, and it is exactly the part people do not look at. A fan that will not clamp to your frame is useless however good it otherwise is.

Tent frames vary. Small tents often have 16 mm poles; large and heavier models sit on 19, 22 or 25 mm. One clip never covers that range: too wide and it slips, too tight and it will not go around.

So this fan is supplied with two separate clips. Clip A takes tubes of 16 to 19 mm, clip B of 19 to 25 mm. Together they cover the whole usual range, and you fit whichever suits your frame.

Measure the tube before ordering, since the stated tent size says nothing about frame thickness. Between two sizes, measure with callipers or run a tape around the tube and divide the circumference by three.

The fan tilts 15 degrees up and down, so you can aim the stream above or below the canopy.

Technical Specifications:

• Blade diameter: 180 mm
• Voltage: 24 volts direct current
• Motor type: brushless
• Clip A: tubes of 16 to 19 mm
• Clip B: tubes of 19 to 25 mm
• Tilt: 15 degrees up or down
• Certification: CE, ETL, IP44
• Life: 50,000 hours

Frequently asked questions

How much air does it move?
The manufacturer does not publish that figure for this model, and we do not repeat a number we cannot support. The blade is 180 mm against 120 mm on the small models.

Are both clips included?
Yes, you get clip A and clip B and use whichever fits your frame.

Why does this last longer than the MF120?
The manufacturer states 50,000 hours for this model against 30,000 for the small one. Both have brushless motors.
