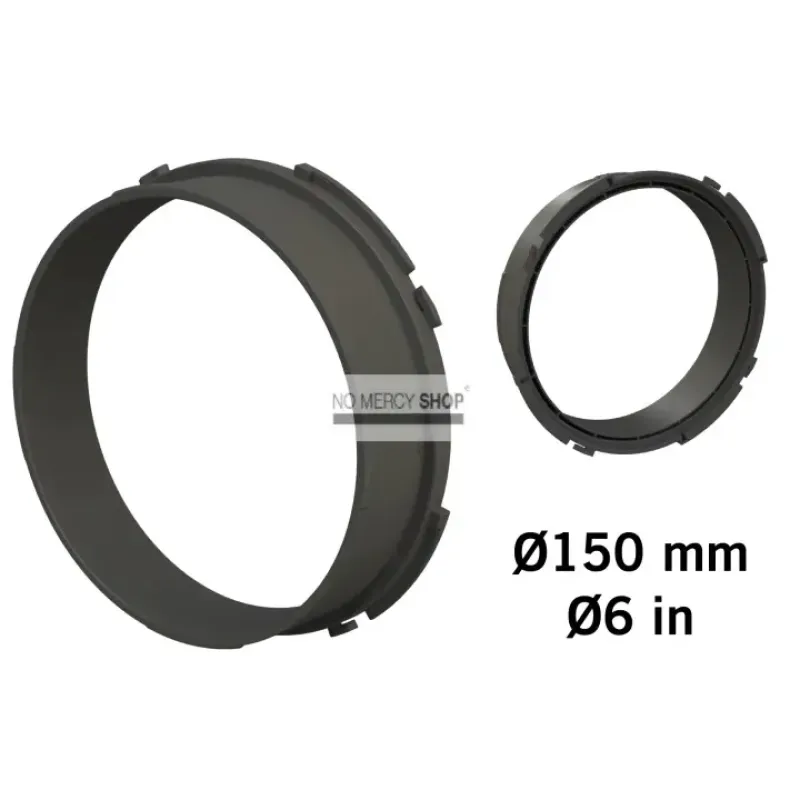

Secret Jardin DF16150 Flange 150 mm

Ø 150 mm connector for the DF16 flange holder. The largest size in this series, and standard equipment on the Dark Street 120.

This is where the DF16 series stops

Ø 150 mm being the largest DF16 connector is not an accident. It is the upper limit of what fits through this holder's opening, which makes it the end point of a setup that grows with you.

For most hobby tents that is ample. A Dark Street 120 ships with it as standard and needs 250 to 350 m³/h, which a 150 mm fan manages without effort and usually throttled back at that.

If you do run into the limit, the next step is not a bigger connector but a different series:

• DF25, for tents with Ø 25 mm poles such as the Dark Room, with connectors up to Ø 250 mm. Those parts are not interchangeable with DF16, so this is a tent decision rather than an accessory decision.
• DFM315, a mobile flange that needs no pole and makes a Ø 315 mm connection in a flexible wall.

Worth knowing before you buy a tent: if you already expect to pass 350 m³/h eventually, choose a tent whose flange system goes there with you. Switching afterwards means a different tent, not a different coupling.

Technical Specifications:

• Connection diameter: Ø 150 mm
• Largest connector in the DF16 series
• Supplied as standard with: Dark Street 120
• Fits: DF16 flange holder
• Interchangeable with: DF16100 and DF16125, same outer size
• Next step for more capacity: DF25 series or DFM315
• Material: plastic
• Revision: R4.00

Frequently asked questions

Is there a 200 mm DF16?
No. Above 150 mm you move to the DF25 series, which fits tents with 25 mm poles.

Will DF25 connectors fit my DF16 holder?
No. The two series have different openings and are not interchangeable.

Can I go back to 125 mm if 150 turns out to be too much?
Yes, just swap the connector. The hole in the canvas stays as it is.
